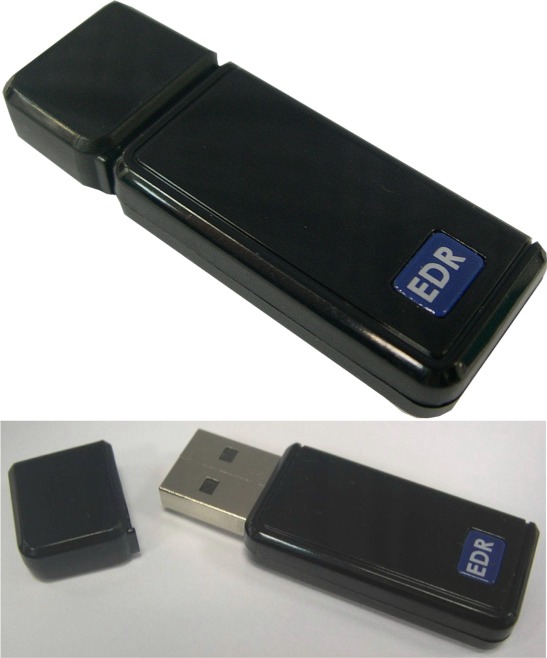

PMR Bluetooth Version 2.0 EDR USB Adapter - Class 2, 10m

The PMR, Class 2, USB adapter is fully compatible with Bluetooth 1.1,1.2 and 2.0. Software supplied supports 2000,XP SP2,VISTA

Brand: PMR
Part Number: PMR-330C
Current Ver: 1
Release Date: September 2007
Bluetooth Ver: Version 2.0, 1.2 and 1.1
Operating Systems: Microsoft Windows 2000/XPSP2/VISTA
Specifications:

• Product Name: Bluetooth USB Adapter (or Dongle)
• Chipset: CSR
• Certification: FCC, CE, ROHS
• Standard: Bluetooth V2.0 + EDR
• Frequency Band: 2.4~2.4835GHz unlicensed ISM band
• Modulation Method: GFSK, 1Mbps, 0.5BT Gaussian
• Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
• Transfer rates (Max): Max UART baud rates of 3Mbps
• RF Output Power: Class 2
• Working distance: Greater than 10m in free space
• Sensitivity: <-82dBm at < 0.1% BER
• Antenna: Ceramic Antenna
• Input power: DC 5V (via USB Port)
• I/O Interface: USB
• LED indicator: Power / Active

• Services supported:
  • Serial Port, Dial Up Networking, Fax, Headset, PIM Item Transfer
  • PIM Synchronisation, File Transfer, Network Access, Audio Gateway, HID
  • OS Support: Windows 2000 / XP / VISTA

• Environment
  • Operation temperature: 0 oC ~ + 60 oC
  • Storage temperature: -10 oC ~ +70 oC
  • Humidity: 5 ~ 90% non-condensing
• Size 49.36 (L) x 17.99(W) x 7.55(H) mm
• Weight 6.3g

Documents and Support :

• Data Sheet: (PDF)
• Quick Start Guide (PDF)
• Support

Declaration of Conformity.                Click here for Certificate

We declare that product PMR-330C conforms to
R&TTE Directive 1999/5/RC
CE 0560
