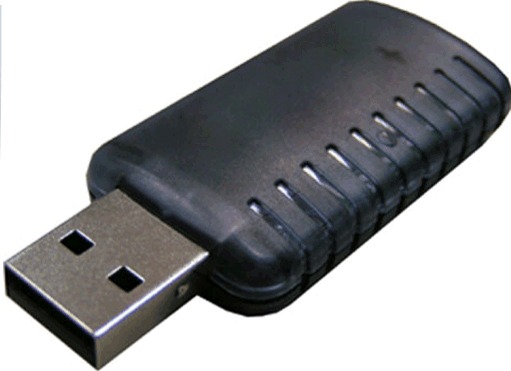

PMR WiFi 802.11g Wireless Lan USB Adapter

| PMR WiFi 802.11g Wireless Lan USB Adapter |
The PMR WLAN USB Adapter fully supports the features and functional compliance of IEEE 802.11b/g standard. It is designed to provide good performance with minimum power consumption and is a very cost-effective solution.
System Requirements:- PC compatible computer with CPU speed 200Mhz or above. memory 64MB or above, 128MB recommended and Microsoft Windows 98SE/ME/2000/XP |
Brand: PMR
Part Number: PMRWiFi11g-RET
Current Ver: Ver 1
Release Date: April 2005
WiFi Ver : 802.11g
Specifications:
- Product Name Wireless LAN 11g USB Adapter
Chipset Zydas1211
Standard IEEE 802.11b, IEEE 802.11g
Frequency Band 2.4GHz ~ 2.483GHz unlicensed ISM band
IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum) Spread Spectrum
IEEE 802.11g : OFDM ( Orthogonal Frequency Division Multiplexing)
IEEE 802.11b : DBPSK / DQPSK / CCK Modulation Method
IEEE 802.11g : BPSK, QPSK, 16QAM, 64QAM
IEEE 802.11b : 1, 2, 5.5, 11Mbps Data Rate
IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54Mbps
Ad hoc Operation Mode
Infrastructure (Access Points is needed)
Transmitter Power 17 dBm
Receive Sensitivity Operating at 11Mbps: -80 dBm @ 8% FER
Operating Range 100 - 400m, depending on surrounding environment
Antenna On board chip antenna
Transmit : < 350mA. Power Consumption
Receive : < 260mA.
64-bit or 128-bit WEP (Wired Equivalent Privacy) /WPA Security
TKIP (Temporal Key Integrity Protocol)
I/O Interface USB 2.0
LED Green LED indicator
Operating System Windows 98SE, Me, 2000, XP
Management Windows-based Utility
FCC part 15B/C for North America. Regulation
CE for Europe.
Humidity 5 ~ 90% (non-condensing)
Size 58 (L) x 23(W) x 9(H) mm
Weight 9 g

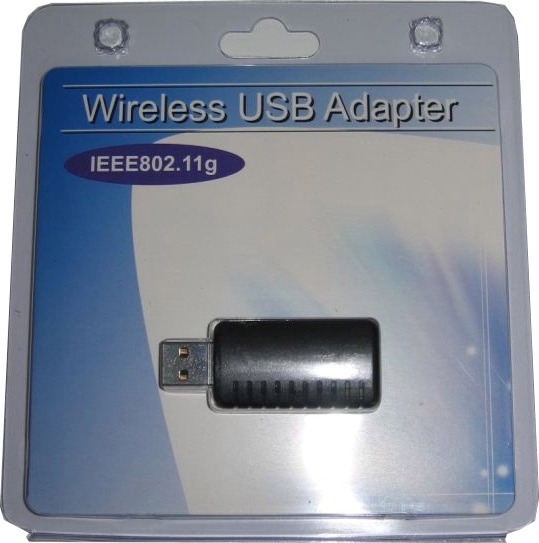

Retail contents include:-
• 802.11g adapter
• Install CD
• Quick Start Guide
System Requirements:-
PC compatible computer with CPU speed 200Mhz or above. memory
64MB or above, 128MB recommended and Microsoft Windows
98SE/ME/2000/XP
- System Requirements: When using these items in conjunction with Skype only Windows 2000 and XP operating systems supported
|
Documents and Support :
|
Declaration of Conformity.
We declare that product PMRWiFi11g-RET conforms to
R&TTE Directive 1999/5/RC
FCC ID:
CE

|
| |
|
