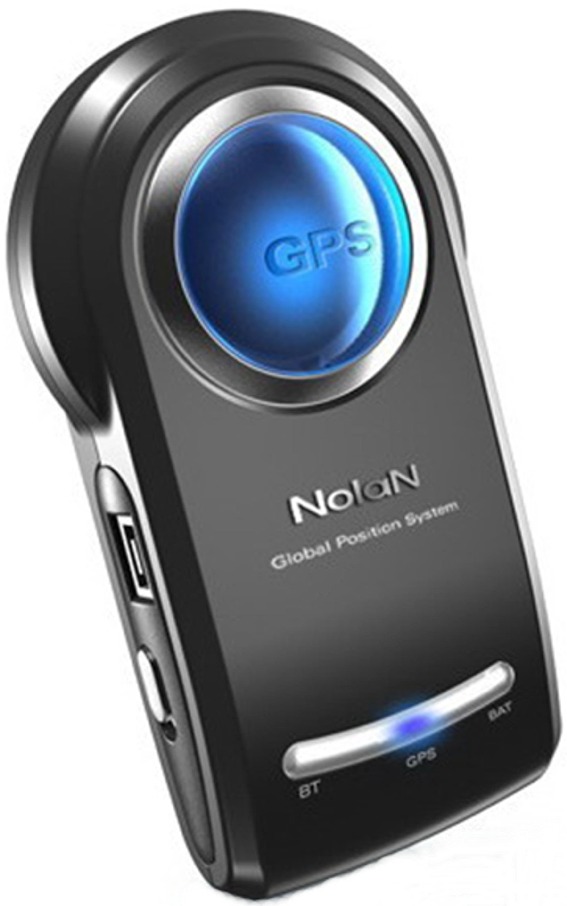

PMR Bluetooth GPS Receiver - Coming Soon

PMR Bluetooth GPS Receiver

PMR Bluetooth GPS Receiver - Coming Soon

The NolaN NBGPS4C2M GPS Receiver offers ultra-low power consumption integrated with Bluetooth™ technology. Its outstanding quality and performance make it an excellent navigational and positioning aid tool when used in conjunction with GPS Mapping software installed on Bluetooth enabled devices, such as a laptop, smart phone or PDA.

The NolaN GPS Receiver uses SiRF Star III technology, making it possible to track GPS signals at far lower signal levels than is currently possible with competing autonomous GPS solutions. This high-capacity navigation system connected to your Bluetooth™-enabled device results in a high-performance, intelligent and dynamic destination guidance system. The embedded Class 2 Bluetooth™ transceiver and the built-in Bluetooth™ Serial Port Profile supports wireless connection to your laptop, smart phone or PDA within a 10m radius. The NolaN GPS Receiver in conjunction with your installed GPS Mapping software points the way easily and reliably.

Brand: PMR



76.8 x 41.9 x 20mm



Internal Battery

950mAh rechargeable Lion Battery

Main power input

5 ± 5% VDC input

Power consumption

  • 350 mW (cont. operation mode)
  • 1.1mW @ shutdown

Bluetooth™ Interface

  • Bluetooth™ Class 2
  • Version2.0+EDR SPP
    (Serial Port Profile)
  • Within 10 m (33 ft) range with no obstruction
  • NMEA 0183 v.2.20, GGA, GSA, GLL, RMC, GSV and VTG
  • Baud rate 38400

GPS Receiver

  • Up to -159dBm tracking sensitivity on SiRF Star III technology
  • 20 channel GPS Receiver for fast accurate positioning

Time to First GPS Fix

  • Hot Start   - 5seconds typical
  • Warm Start - 38 seconds typical
  • Cold Start  - 42 seconds typical

Operating Temperature

-10 to +60°C (14 to 140°F)

Retail contents include:-
• Nolan GPS receiver
• USB Charging cable
• Car charger
• User Guide

Documents and Support :

  • Data Sheet: (PDF) - Available soon, email to request a copy
  • Quick Start Guide (PDF) - Available soon, email to request a copy
  • Support

Declaration of Conformity. - Available soon, email to request a copy
