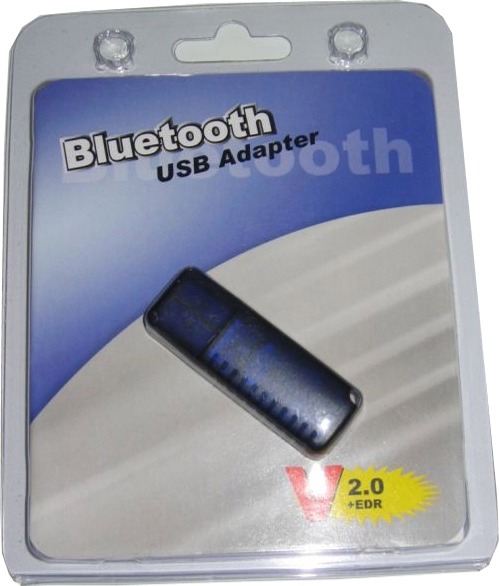

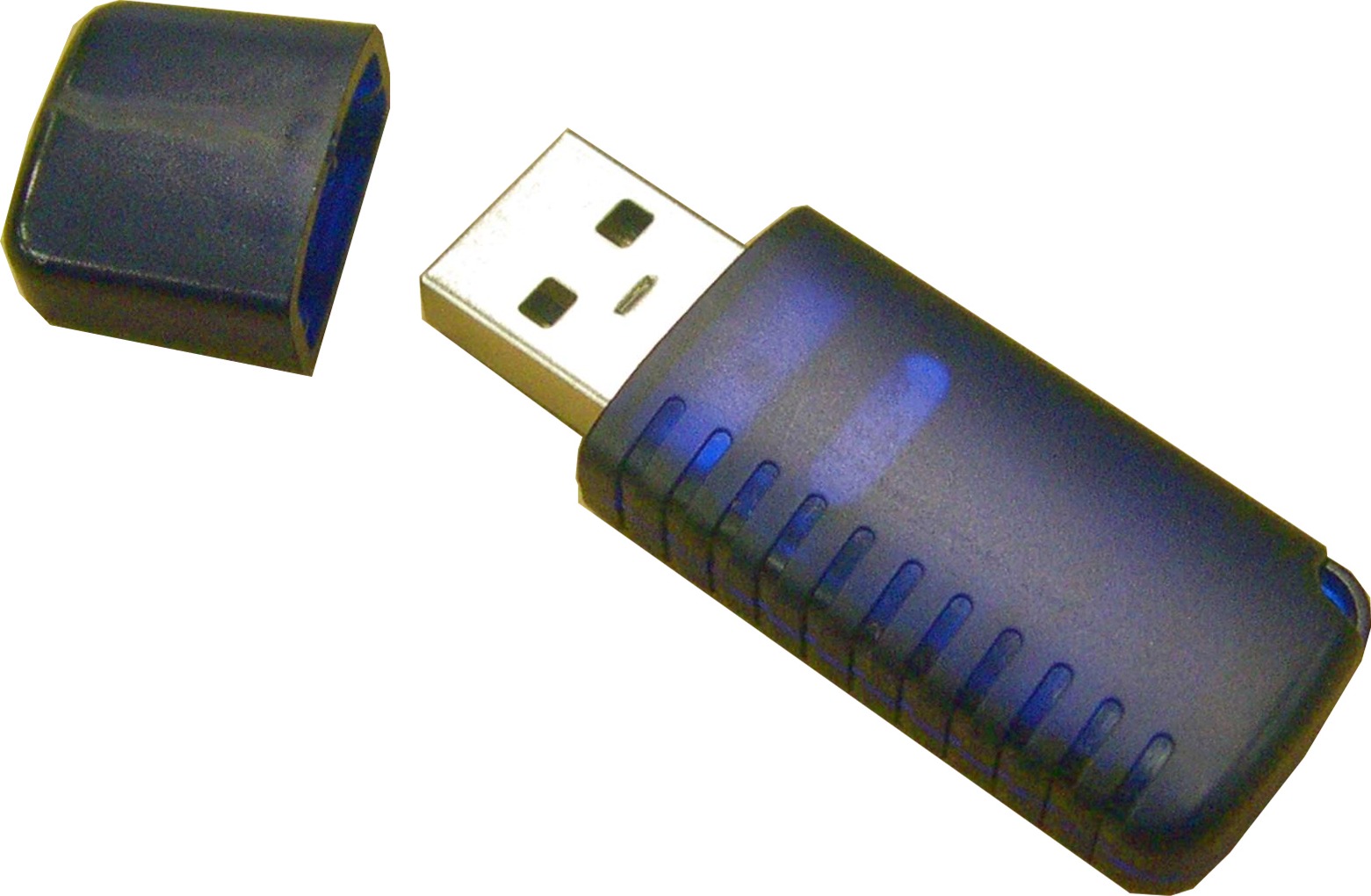

PMR Bluetooth Version 2.0 EDR USB Adapter - Class 1, 100m

PMR Bluetooth Version 2.0 EDR 2 Class 1 USB Adapter        PMR Bluetooth Version 2.0 EDR 2 Class 1 USB Adapter

PMR Bluetooth Version 2.0 EDR USB Adapter - Class 1, 100m

PMR Class 1 Bluetooth USB Adapter present a low-cost, effective means for you to connect many bluetooth devices and dramatically enhance communications between partners or equipment at different locations.

PMR Class 1 Bluetooth USB Adapter is highly integraded Bluetooth Adapter, includes Radio, Baseband, link Manager, and Host control interface. Due to its high sensitivity, low power consumption, and low cost, PMR Class 1 Bluetooth USB Adapter is suitable for numerous electronic devices, it can connect with laptops, PCs , printers , PDAs and cellular phones.

Brand: PMR
Part Number:PMR-0333R
Current Ver:2
Release Date: June 2007
Bluetooth Ver: Version 2.0, 1.2 and 1.1
Specifications:

  • Product Name Bluetooth USB Adapter (or Dongle)
  • Chipset Broadcom BCM2045
  • Certification FCC, CE, ROHS
  • Standard Bluetooth V2.0
  • Frequency Band 2.4~2.4835GHz unlicensed ISM band
  • Modulation Method GFSK, 1Mbps, 0.5BT Gaussian
  • Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
  • Transfer rates (Max) Max UART baud rates of 3Mbps
  • RF Output Power Class 1
  • Working distance Greater than 100m in free space
  • Sensitivity <-82dBm at < 0.1% BER
  • Antenna Ceramic Antenna
  • Input power DC 5V (via USB Port)
  • I/O Interface USB
  • LED indicator Power / Active
  • Services supported:
    • Serial Port, Dial Up Networking, Fax, Headset, PIM Item Transfer
    • PIM Synchronisation, File Transfer, Network Access, Audio Gateway, HID
    • OS Support Windows Win 98SE / Me / 2000 / XP, Mac 10.3.5
  • Environment
    • Operation temperature: 0 oC ~ + 60 oC
    • Storage temperature: -10 oC ~ +70 oC
    • Humidity: 5 ~ 90% non-condensing
  • Size 49.36 (L) x 17.99(W) x 7.55(H) mm
  • Weight 6.3g

Documents and Support :

Declaration of Conformity.
We declare that product PMR-0333R conforms to
R&TTE Directive 1999/5/RC
CE 0560
